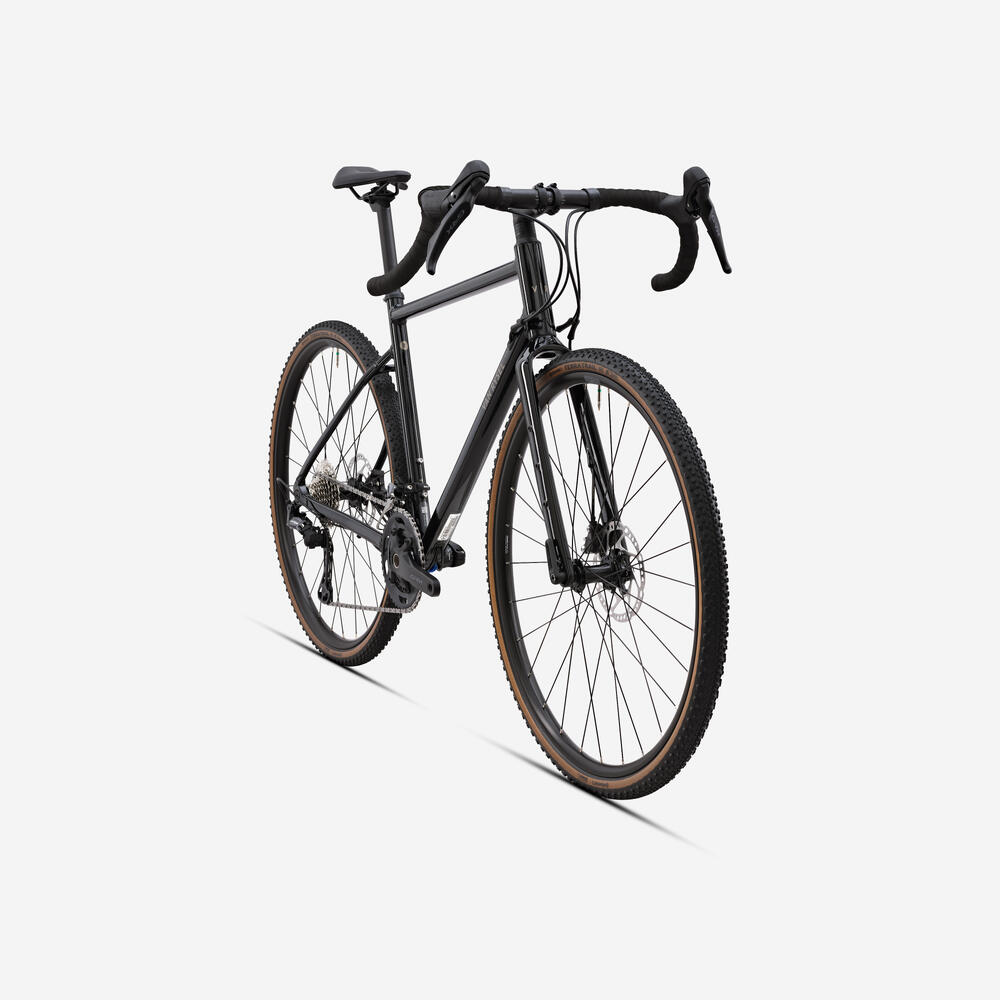

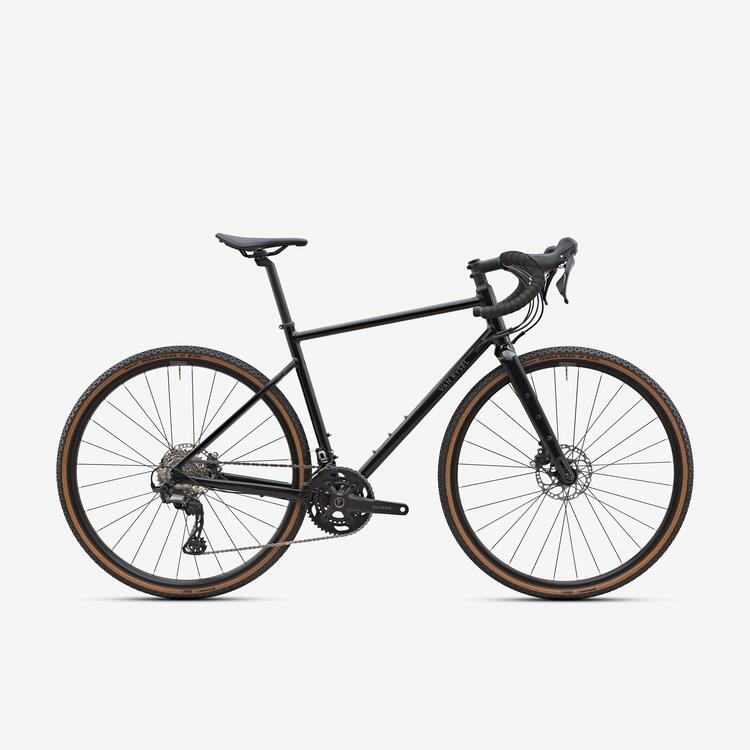

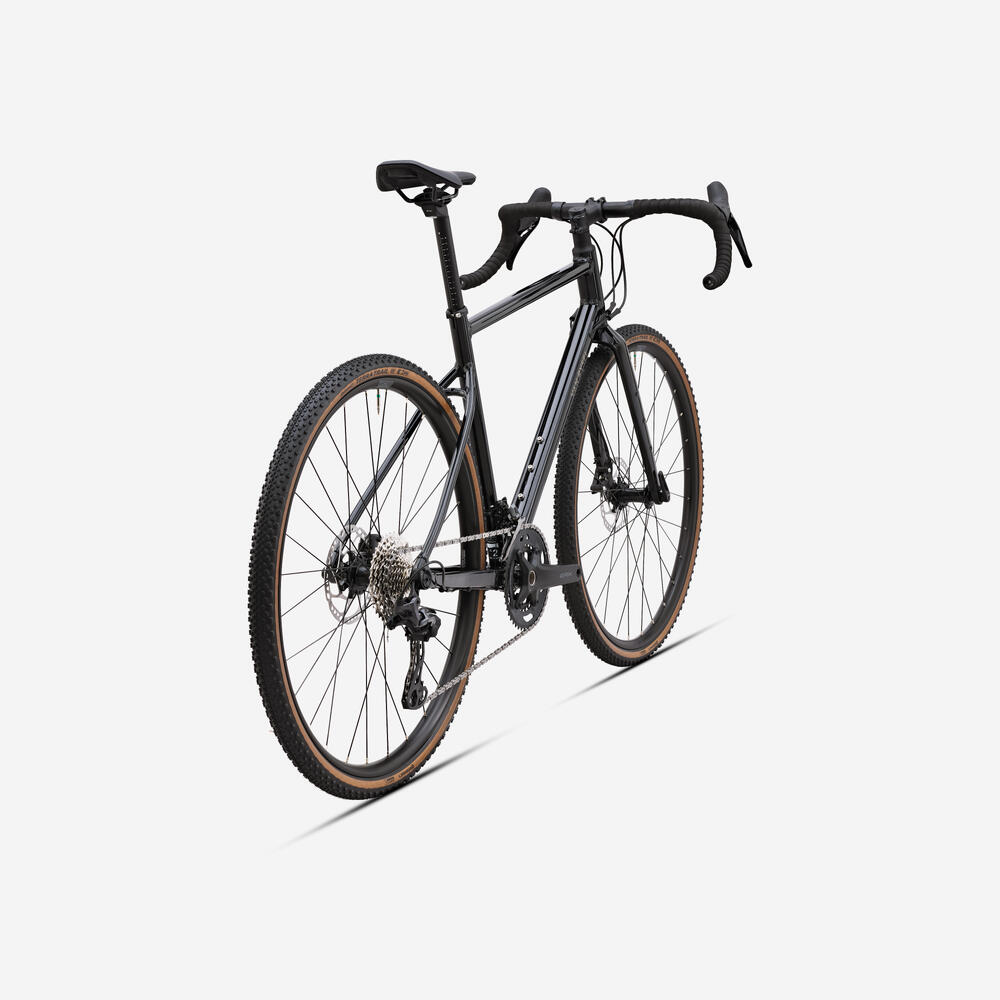

THE AF GRAVEL RANGE

The AF gravel is the new bike that we've developed for your regular gravel rides and your first bikepacking adventures.If you want to get way from it all and have some fun, this bike is for you.The geometry has been improved to make the bike more comfortable and versatile.You can mount tyres up to 50 wide (in 700!) to venture out on long winding trails in search of freedom and thrills.

HIGH-QUALITY, COMFORTABLE ALUMINIUM FRAME

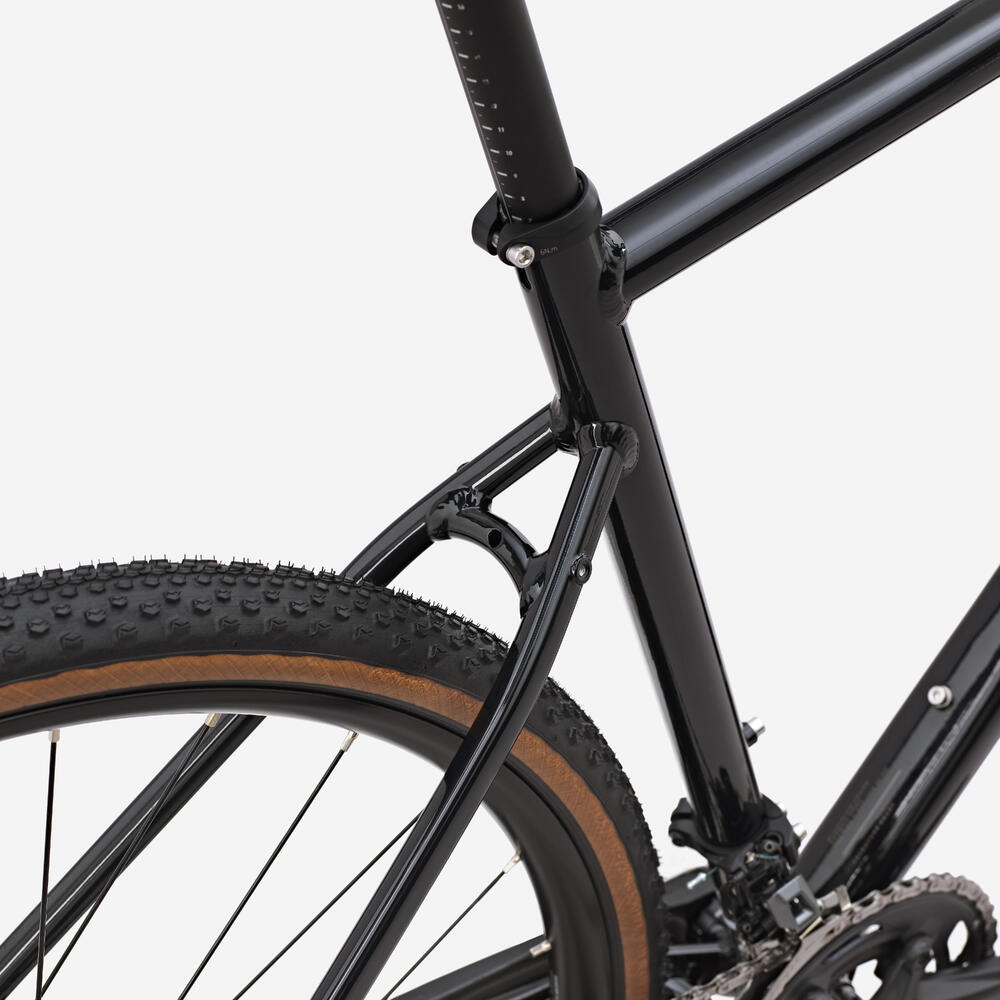

The GRVL AF frame is made from double-thickness 6061 aluminium which reduces its weight and makes it more responsive, for a very playful bike.Its geometry was designed for comfortable riding on gravel.The frame is compatible with tyres with a max cross section of 50mmThe frame weighs 1,870g in size M.

CARBON FORK

The GRVL AF fork is made of carbon for rigidity and propulsion, with an aluminium pivot to guarantee sturdiness.Three side inserts enable you to attach extra bags or bottle carriers to set off on an adventure.The fork is compatible with tyres with a max cross section of 50mmThe frame and fork are compatible with mudguards and a pannier rack.

RIDING POSITION:HANDLEBAR AND STEM

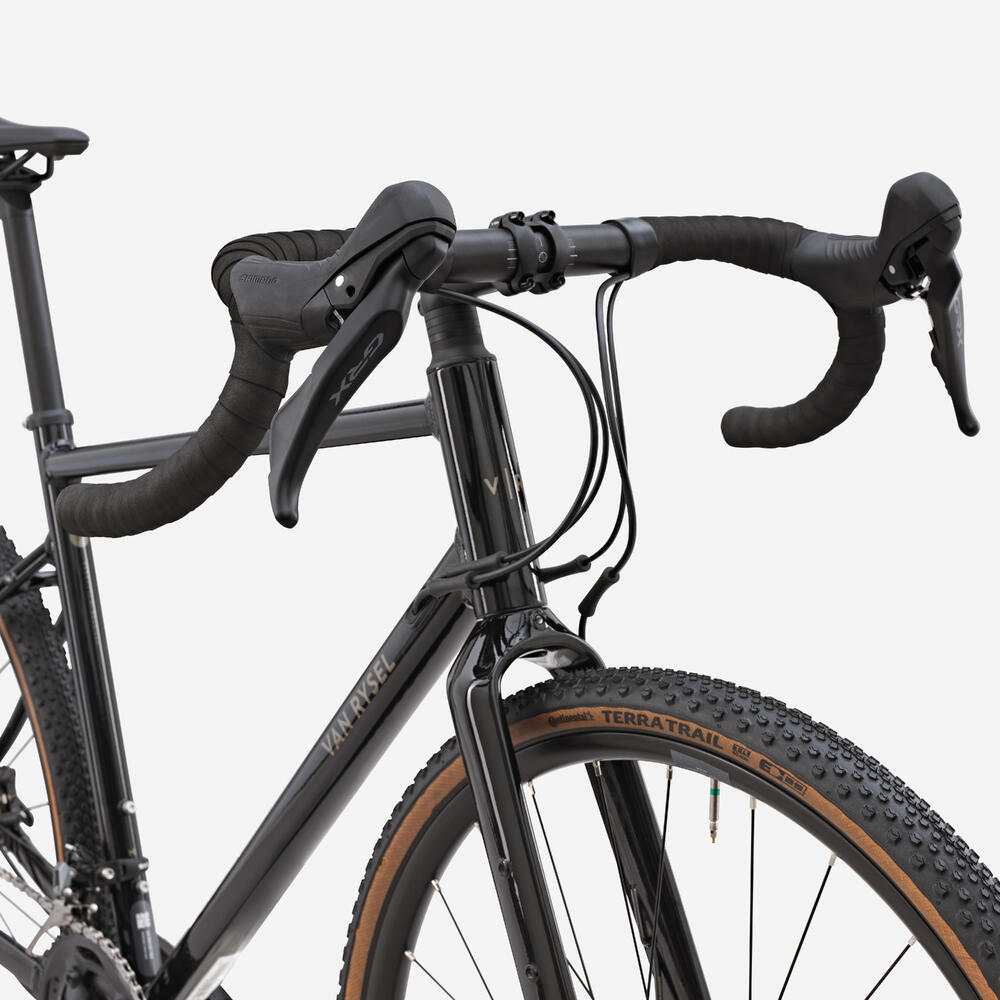

The GRVL AF 31.8 mm diameter handlebars are made from 6061 T6 aluminium.The 16º flare is ideal for gravel riding, for a comfortable ride and good manoeuvrability.Handlebar width depends on bike size: XS - 400 mm S - 420 mm M/L - 440 mm XL - 460 mm The reach is 70mm and the drop 130mm.The stem is made from 6061 T6 7º/ -7º aluminium Stem length according to bike size:XS - 60 mm S - 70 mm M - 80 mm L - 90 mm XL - 100 mm

SHIMANO GRX 610 2x12 SPEED TRANSMISSION

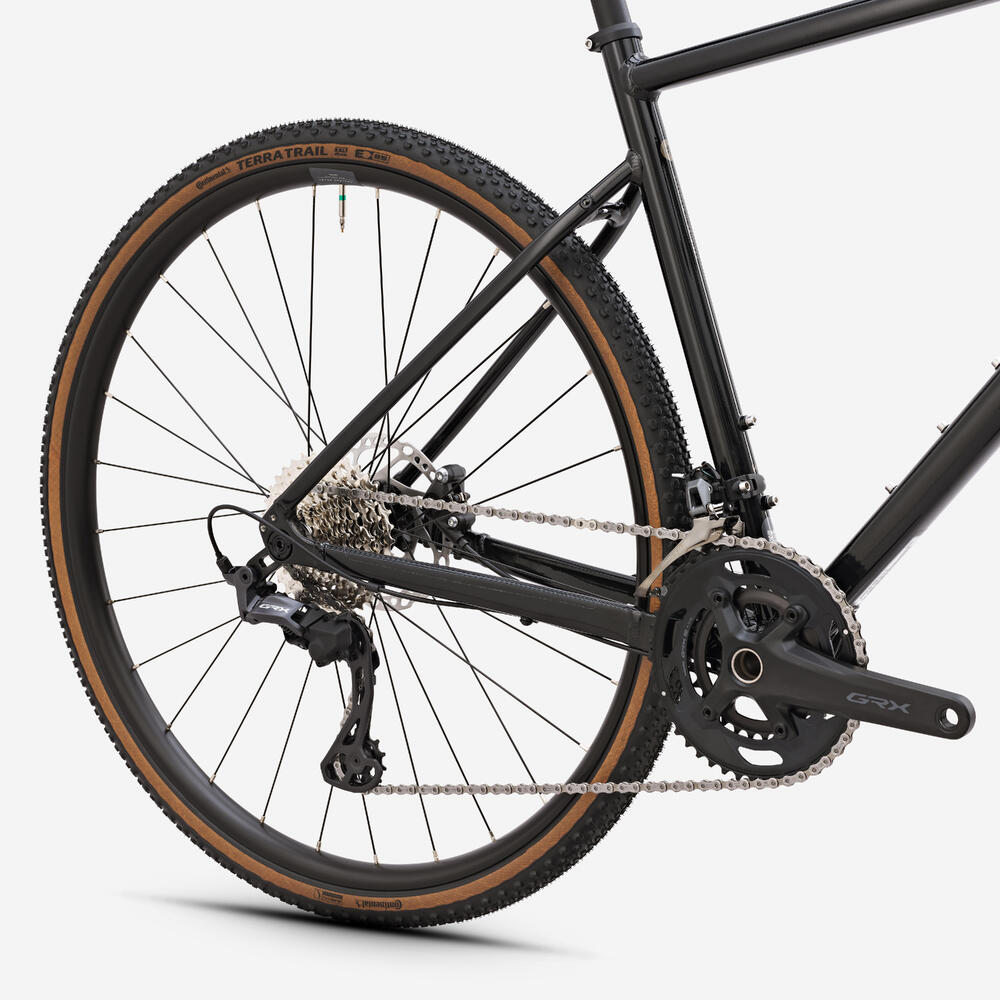

This bike has a SHIMANO GRX 610 double chainring drivetrain with 12 speeds. Shifter: Shimano GRX 610 2x12 Crankset: Shimano GRX RX-610 30/46 Crank Length: XS/S - 165 mm M/L - 172.5 mm XL - 175 mm Front derailluer: Shimano GRX FD RX820F Rear derailleur: Shimano GRX RD RX820D Direct Mount Cassette: Shimano CS-HG710 - 12S - 11/36T Chain: Shimano M7100 12S - 114 LINKS Crank housing: BSA 68mm Shimano SM-BBR60

Hydraulic disc brakes

Hydraulic brakes: Shimano GRX BR-RX400 Flatmount Front / rear brakes: Shimano SM-RT64 160mm Centerlock Brake levers: Shimano GRX 610 Resin pads Powerful and precise braking through simultaneous activation of two combined pads, coupled with highly adjustable settings.

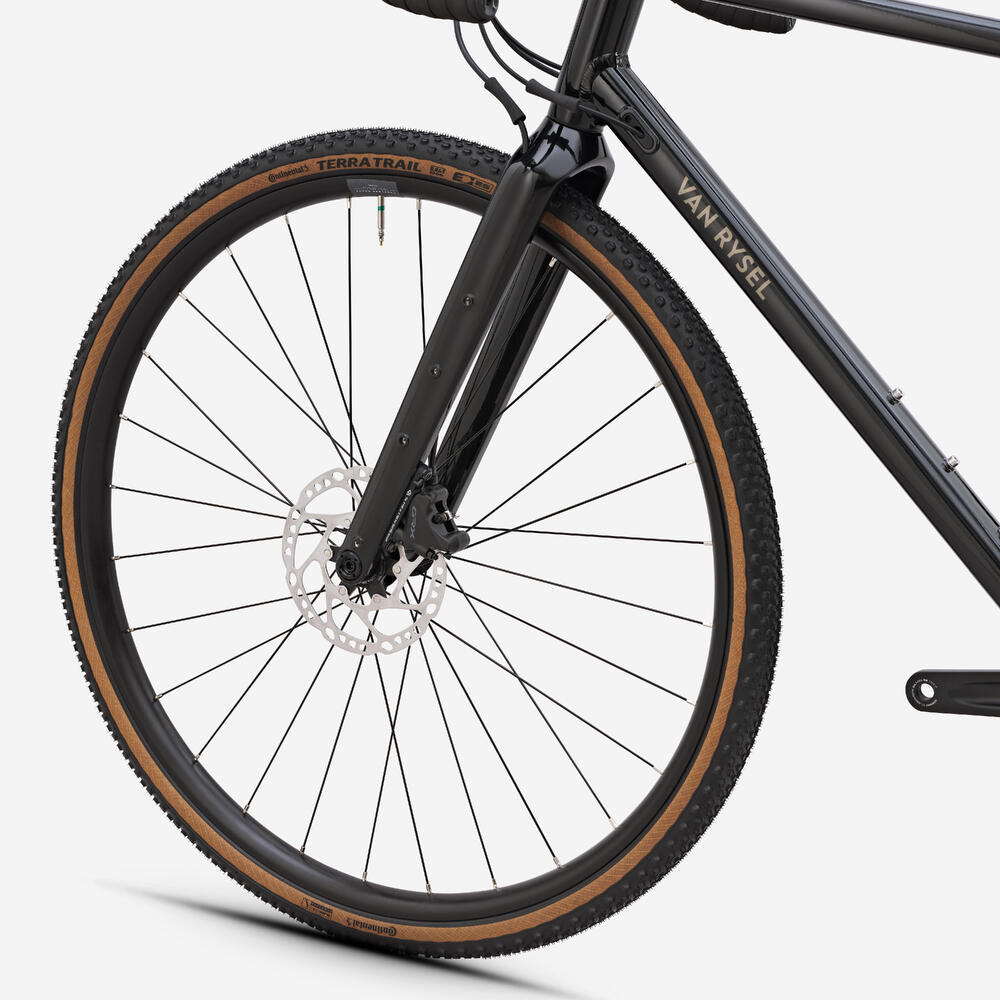

ALUMINIUM WHEELS DESIGNED FOR OFFROAD BIKING

6069 aluminium rims Internal width 27mm External width 31.4mm Rim height 19 mm 28 spokes Centerlock axle Front thru axle 12x100mm M12x1.5 Rear thru axle 12x142mm M12.x1.5 Tubeless ready (kit not included) Wheels compatible with tyres 35mm wide minimum and 50mm wide maximum.Wheel weight: 1,877 g

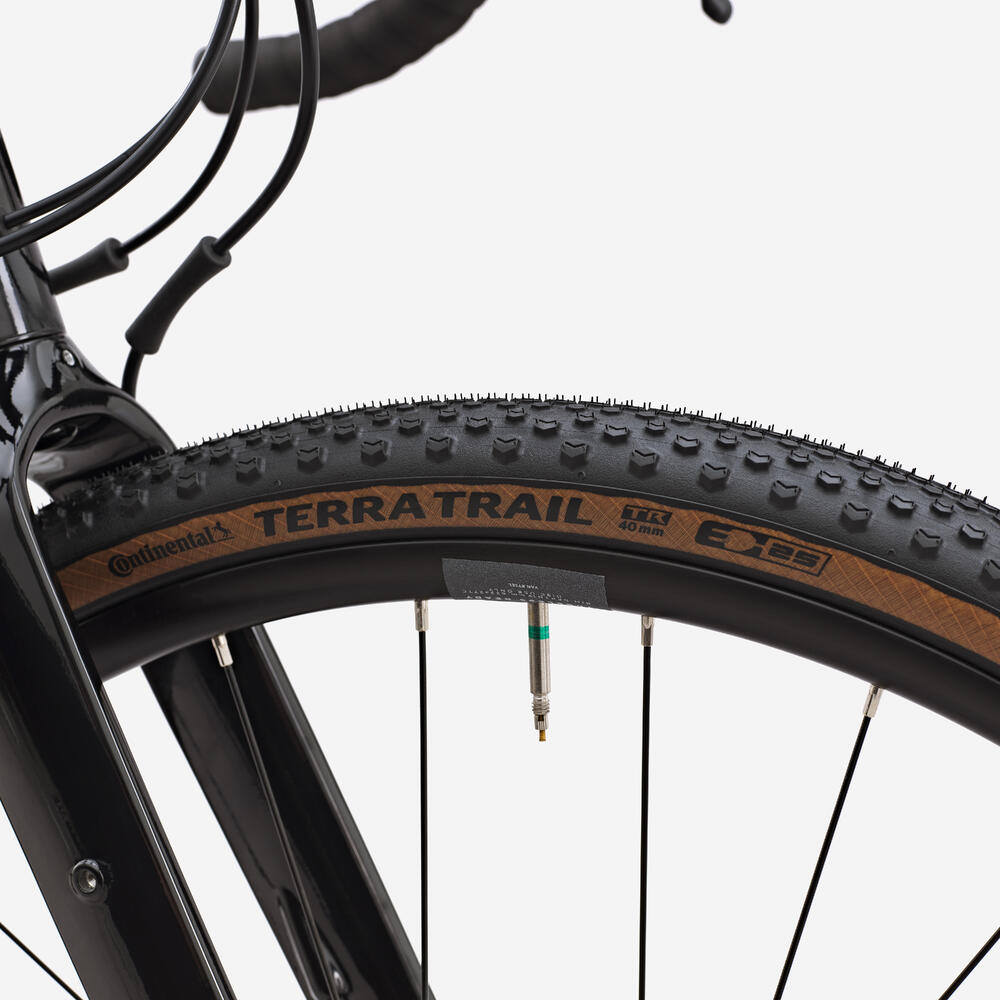

CONTINENTAL TERRA TRAIL GRIPPY TYRES

Tyres: Continental Terra Trail 40x700mm Weight: 460g per tyre. Inner tube pressure: min:2.5 bar/38 psi max:3.5 bar / 51 psi Check out our tips here:https://conseilsport.decathlon.fr/comment-gonfler-ses-pneus-en-gravel The tyres are fitted with inner tubes, but there is an option to convert them to tubeless using valves ref 8551979 and sealant ref 8363393.

Position

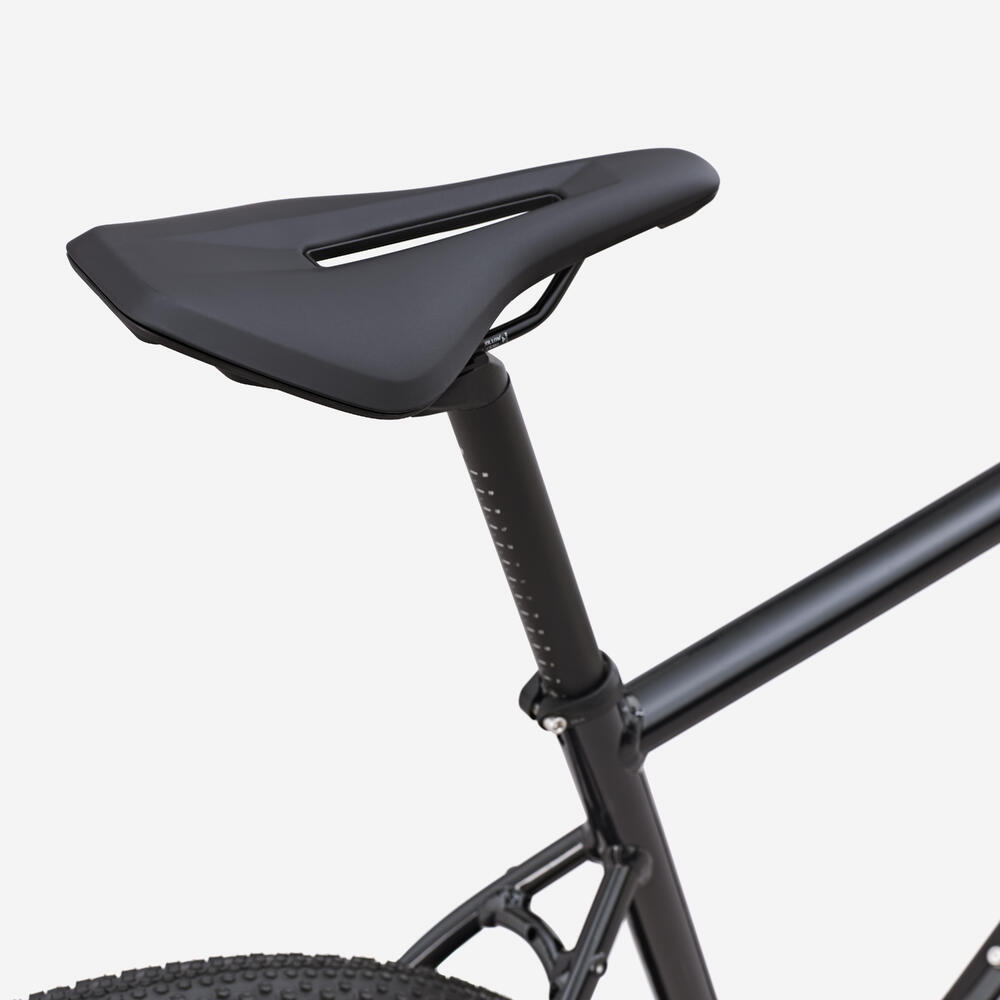

DECATHLON COMFORT 30º saddle Width:155 mm Length: 250 mm Steel clamp B'TWIN 6061 T6 aluminium seat post Diameter:27.2 mm Height: XS/S: 300 mm M/L/XL: 350 mm The natural flex of the seat post (thanks to its 27.2 diameter) filters vibrations and impacts for greater comfort

LITTLE THINGS TO KNOW ABOUT THE GRVL AF

Your GRVL AF comes with a box that includes: - Platform pedals, we recommend using clipless pedals to take full advantage of this bike's performance - 2 brake clips - 1 bell - 1 front and rear light - 1 torque spanner - 1 tube of seat post grease

BIKE WEIGHT

This Shimano GRX 610 set-up (without pedals or preventative liquid) weighs approximately: XS:10.5kg S : 10.52 kg M: 10.6 kg L: 10.71 kg XL: 10.8 kg The maximum load (user+load) is 110 kg whatever the bike size.

CARE TIPS

We recommend avoiding high-pressure water jets when washing your gravel bike to avoid damaging it.We recommend cleaning your Gravel bike after each ride, particularly after confronting particularly muddy or dusty terrain. In addition, remember to check your tyre pressure and braking efficacy before each ride.

PROTECTING the FRAME

When using bags or other accessories, you can use the following transparent protective stickers: 8486947. Resistant to temperature variations, water, tears and UV rays.

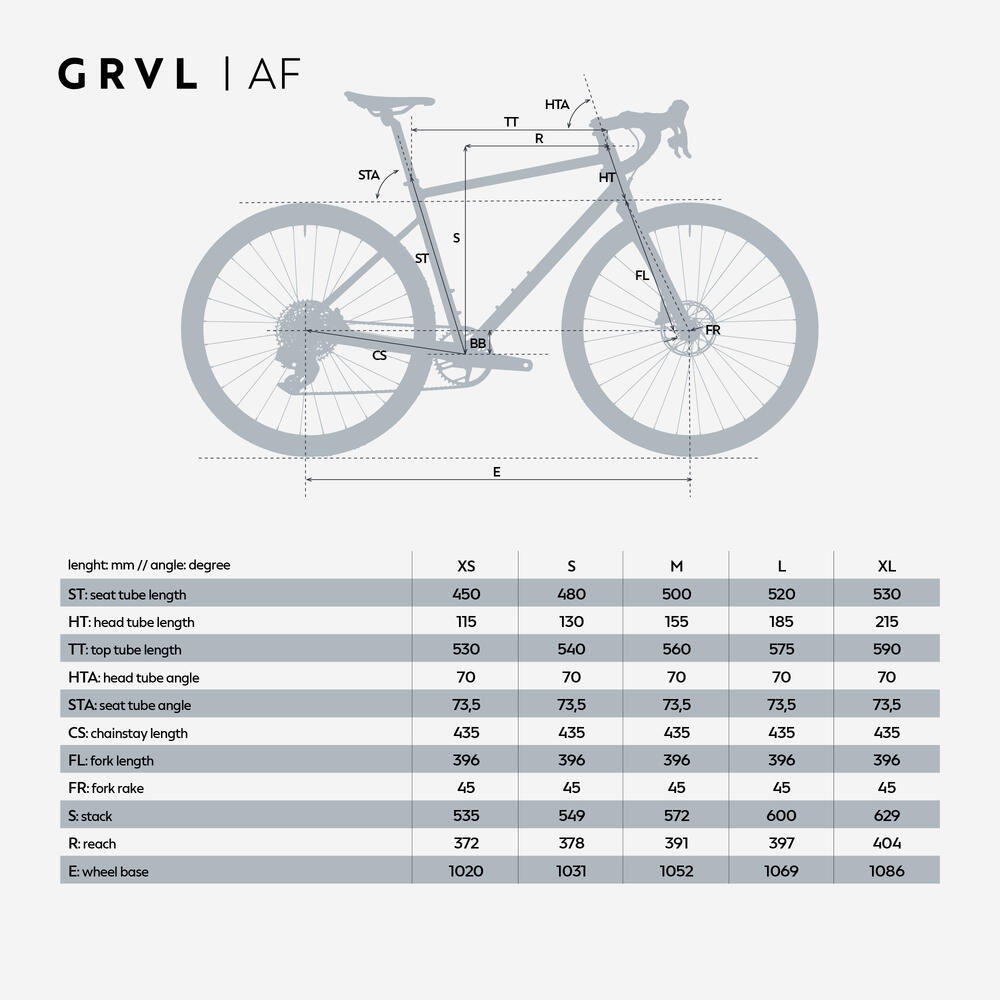

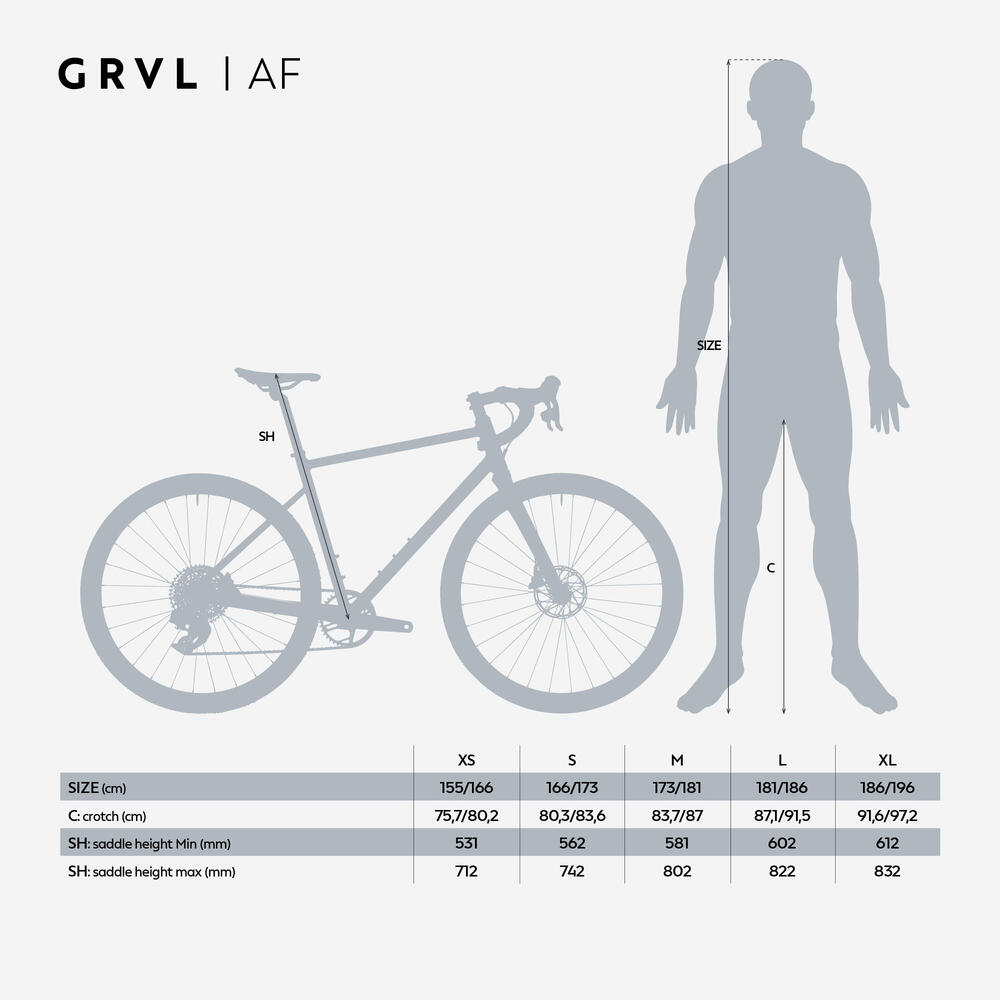

CHOOSING THE SIZE OF YOUR BIKE

You should choose the size of your bike based on your height, as well as your build (arm span and leg length). If you are between sizes, opting for the smaller size will be more comfortable and make it easier to tackle gravel trails. XS: 154 - 165 cm S: 165 - 173 cm M : 173 - 180 cm L: 180 - 188 cm XL: 188 - 200 cm
